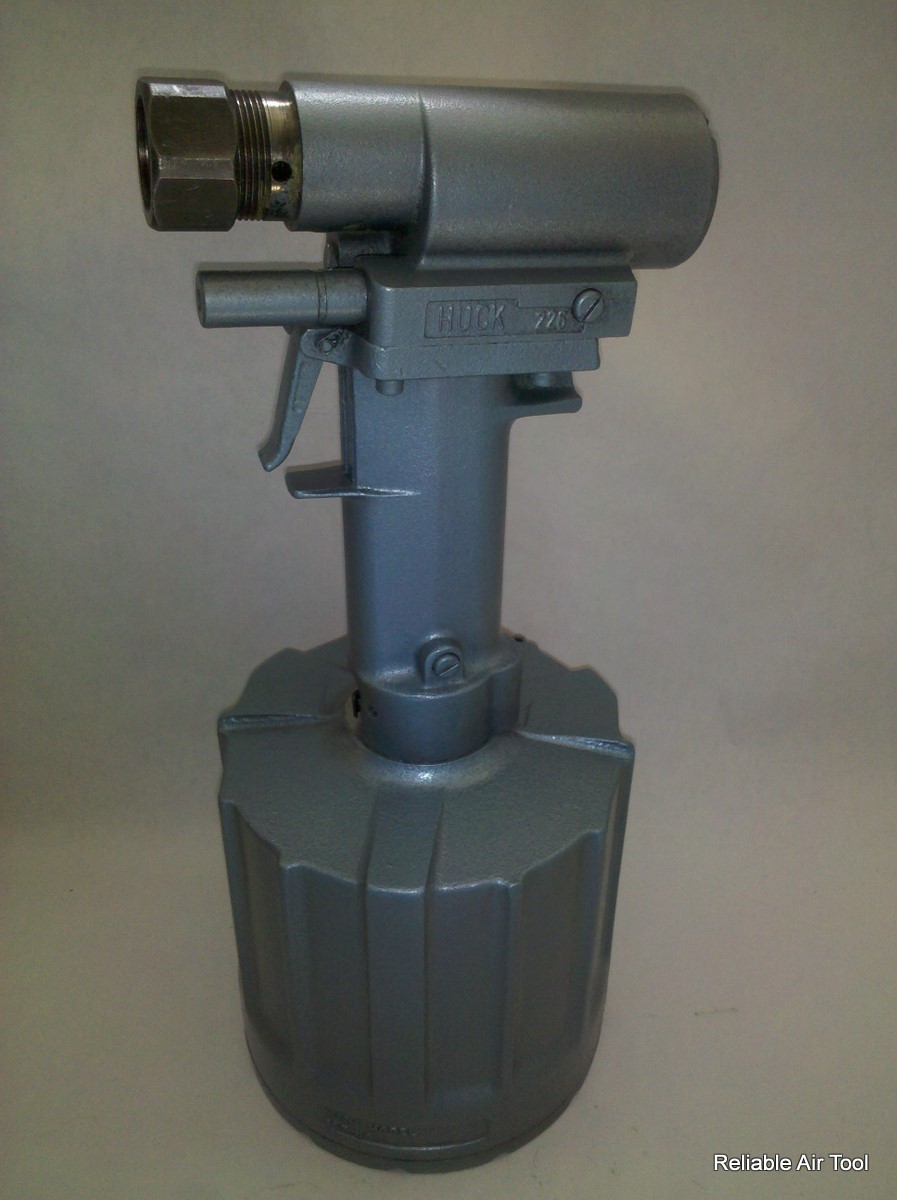

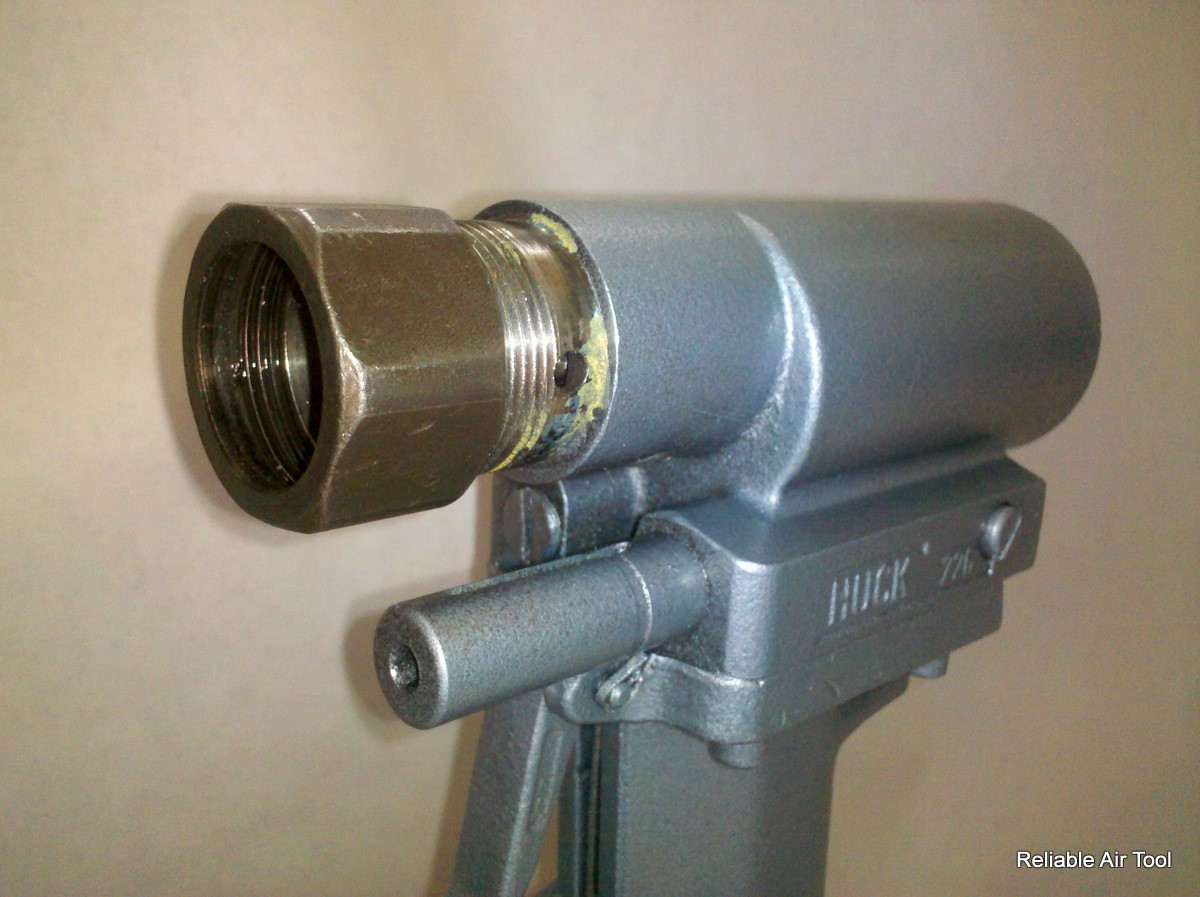

This

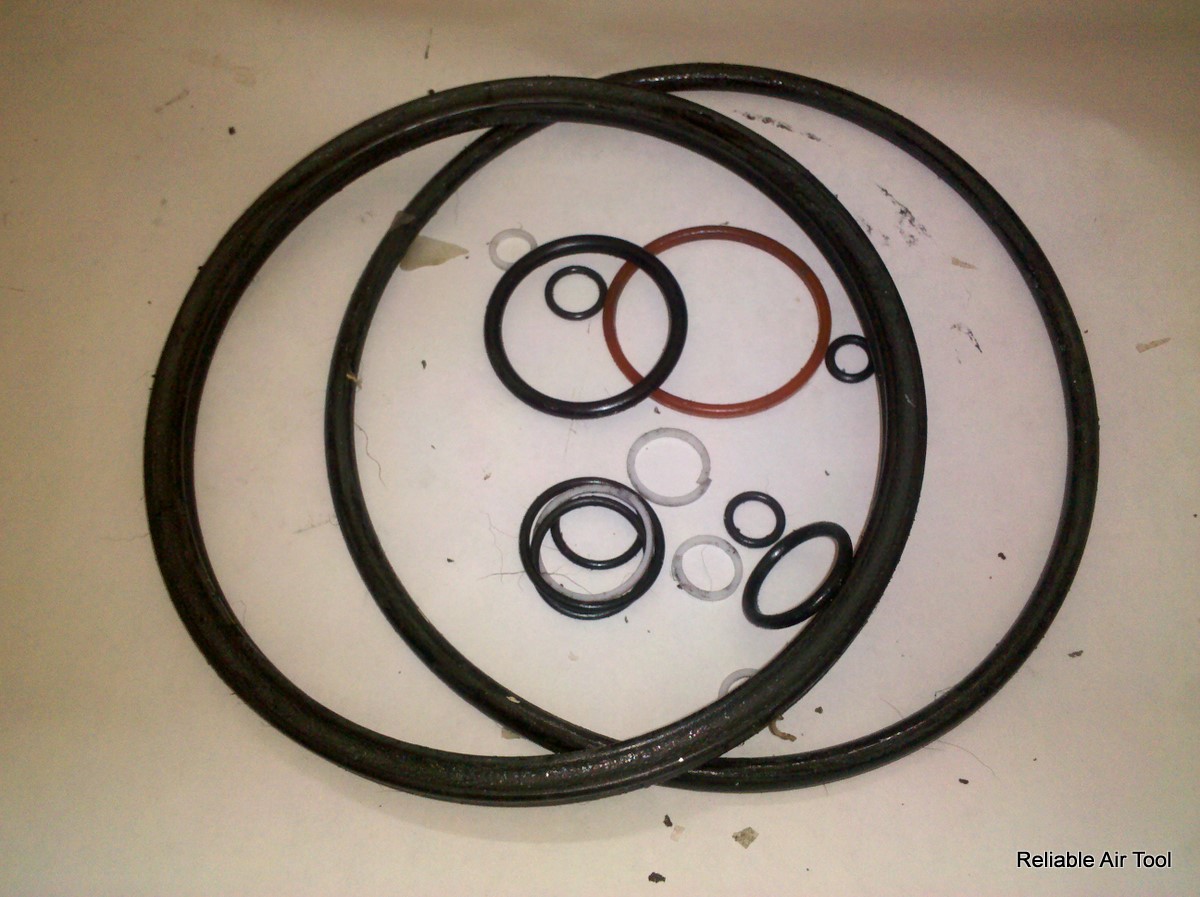

Huck 226 gun has been completely dissembled and all seallys and
o-rings, hydraulic seals and quad rings replaced. The old paing stripped
and the steel head backed oxidized. It is the functional equivalent
of a new Huck 256.
With correct nose pulls Huck C6 and Magnagrip Huckbolts as used

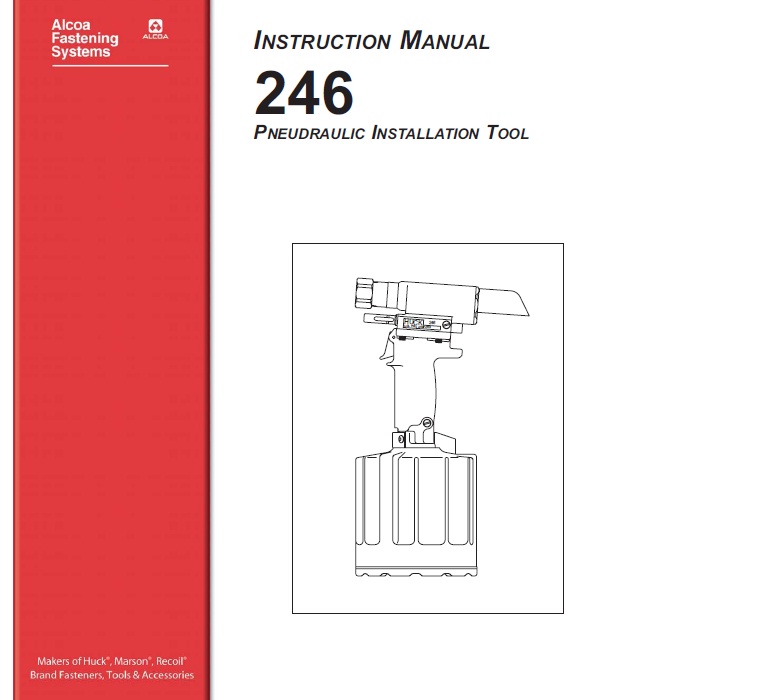

in truck trailer repair and industrial assembly work. Manual Included. Pulling
for is sufficient to shear 3/8" steel and 3/8" aluminum Huck bolts.
Specifications:• Stroke: .875
• Weight: 11.1 lbs
• Air Pressure: 90-100 psi
• Capacity: 9986 lbs @ 90 psi
• Speed/Cycles: 30 per minute
• Noise Level: 85 dBA@ 90 psiWeight
Description:
When
the trigger is depressed the throttle valve moves to down position,
pressurized air is directed to the bottom of the air piston, causing the
piston to move upward. The air above the piston is exhausted and
directed through the center of the throttle valve and out the bottom of
the tool . The air piston has a rod and a hydraulic piston
attached.
When the air piston rod moves upward, a column of pressurized fluid is
forced into head, which moves the pull piston back. The attached nose
assembly moves with the pull piston to start
fastener installation.
When fastener installation is completed, the trigger is released. Air
pressure with the assistance of a spring causes the throttle valve to
return to its up position. Pressurized air is re-directed to the top of
the air piston, causing the piston to move downward. The air from below
the piston is exhausted through bottom of tool. The rod and hydraulic
piston move downward; hydraulic pressure is reversed and the pull piston
is returned forward. Return pressure relief valve protects tool against
pressure spikes. The reservoir replenishes hydraulic system as needed.
I am a Tool Hound and am always finding unique and different tools you
never even knew you needed... so, You may be interested in our other listings.
Please remember 99% of the items I sell are used so they likely
may have minor scratches or identification numbers. For common items,
representative photos may be uses.Thank you!
