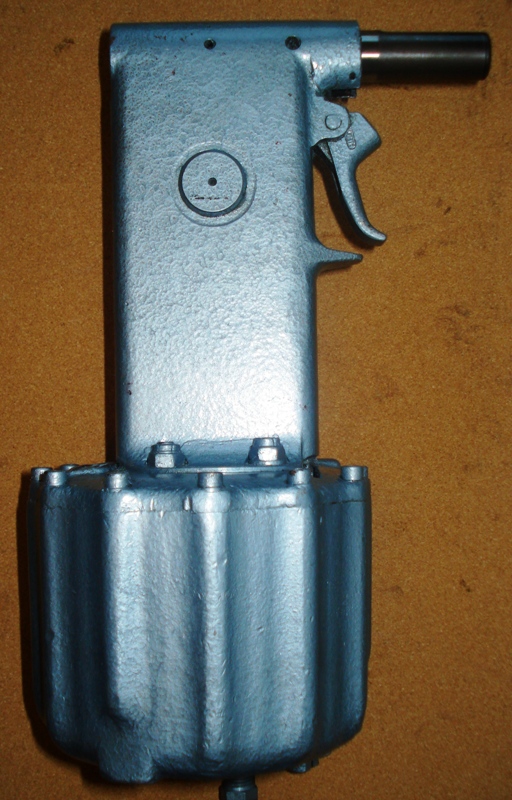

Huck 352 rivet gun in very good working condition. Includes
NEW 3/16' MG Huck nose modified to fit 352 gun. Pulla Magnagrip
Huckbolts as used for Peterbuilt cab panels, truck trailer repair and
industrial assembly work. Manual Included. Pulling for is sufficent to
shear 1/4" C6 steel Huckbolts.
Specifications:
- Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 lbs
- Overall Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-3/4 in.
- Overall Width, without nose . . . . . . . . . . . . . . . . . . . . . .6-3/8 in.
- Stroke . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9/16 in.
Description:
The
Model 352 Huck Installation Tool is a pneumatic single-action tool for
high speed installation of Huckbolt Fasteners and Huck Blind Fasteners.

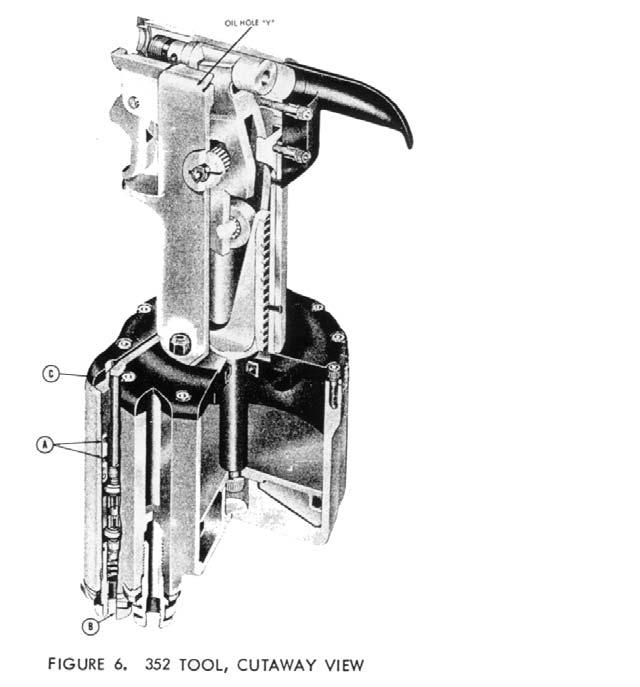

The
rectangular-shaped handle is rigidly attached to the adapter, which, in
turn is bolted to the cylinder. The spindle and nose assembly, located
in the top of the handle, install the Huckbolt Fasteners. Inside the
handle is mounted the spindle-operating lever with its antifriction
roller, the upper ladder bearing cage and lower bearing on which the
wedge rides, and the wedge and piston rod assembly that reciprocates
between them tooperate the spindle. The spindle lever, therefore, is the
connecting link between the wedge and piston rod and the spindle, which
is located in the spindle housing. The lower end of the spindle lever
rides in the milled slot of the wedge while the upper end straddles the
flats on the spindle. During the working cycle, the wedge and piston rod
move forward, pulling the lower end of the pivoted spindle lever
forward. This forces the upper end of the spindle lever back, bringing
the spindle and nose assembly parts back with it to install the
fastener. The complete operating cycle of the tool is accomplished.
